F21 SERIES

Features


2~6 commands

The F21-2S/D is a pocket size transmitter

Low power consumption transmitter.

Shock resistant receiver mounting specially suitable for mobile devices

Over 4.3 billion unique ID code available.

Temperature range -35°C ~ +85°C

Enclosure protection class IP 65

Microsoft Windows based software for custom setup configurations

Structure : Glass-Fiber

Receiver supplied with multi-core connection cable

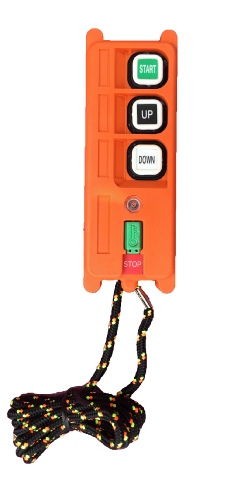

F21-2S/D Transmitter


Dimensions : 130 x 45 x 22 mm

Weight : 120g (without batteries)

2 single / double step pushbuttons

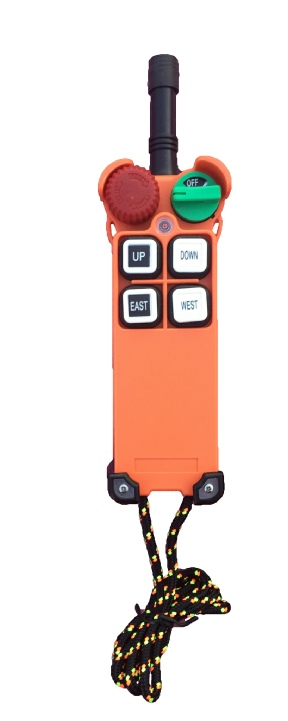

F21-4D Transmitter


Dimensions : 156 x 61 x 51 mm

Weight : 320g (without batteries)

4 single/double step push buttons

F21 2S/D

F21 4D





F21 2S

F21 4D

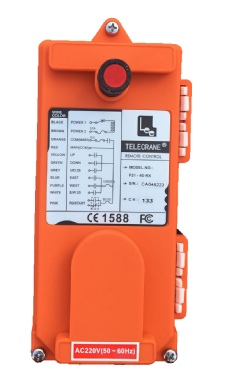

F21-2S(s) Receiver


Dimensions : 84 x 82 x 48 mm

F21-2D/4D Receiver

Power Supply:

24/48/(110)/220/380 VAC

50-60 Hz(±20%)

Dimensions:

185×85×85 mm

Weight:

Approx. 550 g without cable

12 - 24 VDC  for mobile installations



Transmitters

Receivers
