The receivers are available in three sizes and 4 different model for the output features.

They are equipped with terminal screws for easy connection to any system. The installation can be done by 4 corner brackets, or through fastening to the centre nut.

A green and red LED displays the status of transmission by colour and flash rate.

The HS Receiver has a DC Converter option available to increase the supply from a 12 to 24 Vdc.

JUUKO RECEIVERS

Furthermore ….

Transmitters

Options / Accessories

H / HV

Receiver Fixing

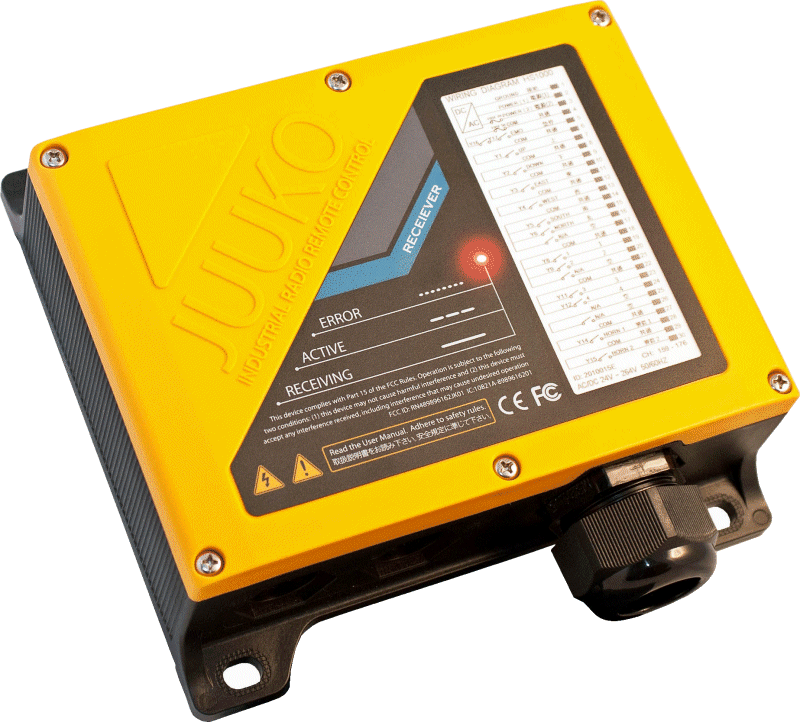

The receiver enclosure has 4 lugs for mounting bolts and a central threaded insert for single hole installation/mounting via anti-vibration mount.

Each casing is equippted with a vacuum valve to avoid internal condensation.

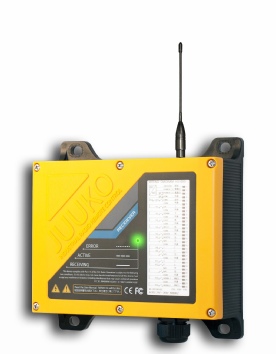

Antenna Receiver

An optional receiver antenna can be connected via an SMA connector. For example if the receiver needs to be mounted inside a steel shielded enclosure the antenna could be mounted on the outside of the steel enclosure.

Receiver Status LED

A green and red LED displays the status of transmission by colour and flash rate.

	H & HV RECEIVER	HS RECEIVER	HM RECEIVER
Frequency	433.0525 > 433.7775 MHz	433.0525 > 433.7775 MHz	433.0525 > 433.7775 MHz
Modulation Type	4GFSK	4GFSK	4GFSK
Sensibility	-112 dBm a 1,2 Kbps	-112 dBm a 1,2 Kbps	-112 dBm a 1,2 Kbps
Control system frequency	PLL	PLL	PLL
Antenna Impedance	50 ohm	50 ohm	50 ohm
Typical response time command	50 > 100 mS	50 > 100 mS	50 > 100 mS
Supply	From 90 to 460 Vac	From 24 to 264 Vac	From 24 to 48 Vac
Antenna	External	External	External
Consumption in stand-by	16 mA to 220 Vac	16 mA to 220 Vac	16 mA to 220 Vac
Power transmission data feedback	+ 10 dBm	+10 dBm	+ 10 dBm
Operating temperature	-10°C > + 75°C	-10°C > + 75°C	-10°C > + 75°C
Relays	2 stop + 2 start + 2 function (1 N.A. 5A 250 Vca)	2 stop + 2 start + 13 function (1 N.O. 5A 250 Vca)	2 stop + 2 start + 19 function (1 N.O. 5A 250 Vca)
Dimensions and weight	H142 x L141,2 x P58,8 mm weight 800 gr.	H190 x L184 x D64 mm weight 1750 gr.	H272 x L260 x D96 mm weight 2950 gr.
Case material	Nylon and glass fiber IP65	Nylon and glass fiber IP65	Nylon and glass fiber IP65
