Features :


Independent LEDs,indicate the status of the battery.

Activation of the transmitter is protected by an electronic key-code and an auto shut-off option which is programmable.

The system automatically changes to another frequency in the presence of radio interference.

Eco power management system. Save on batteries.

It can receive and display via 4 LEDs signals coming from the receiver (relay action feedback).

Mushrooms type EMO button.

Wireless pairing procedure using the keyboard pushbuttons.

Black box function – collect the usage data of both transmitter and receiver.

Data Feedback - enable the visualization of status through 4 LEDs.

Range limiting function

QI wireless charging compatible

The zero-g safety function can prevent the uncontrolled output of commands in specific emergencies.


K SERIES


Furthermore ….

Receivers

Functions

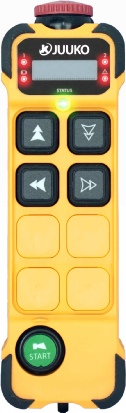

K404

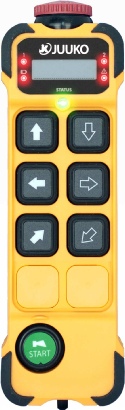

K606

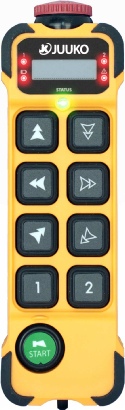

K808

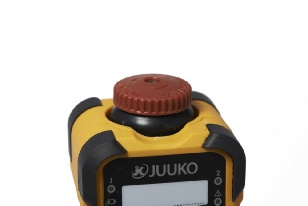

Extra protective sealing


The rubber protective cover under the EMS button is designed to protect against dust and small stones in case of a fall.  This design avoids stones and grit to jam the EMS movement.

Non slip


The back of the K series has an anti-slip texture.  The matte black rubber-tone  finish is durable and offers a secure grip


On the ground protection


The stainless legs on the back of the K series provide protection against abrasion when lying on it’s back.

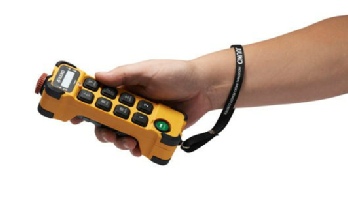

Ergonomical


The K-Series remote controls are easy to use and provide comfort due to their ergonomic design.

Specifications


Frequency

433.0525 > 433.7775 MHz

Modulation type

4GFSK

Maximum operating distance

100 meters

Control system frequency

PLL

Antenna impedance

50 ohm

Typical response time command

50 > 100 mS

Power supply

2 alkaline battery (AA)

Antenna

Internal

Average consumption

16mA a 3Vcc

Transmission power

< 10 dBm

Operating temperature

-20° C > +80°C +-10%

Degree protection

IP65

Overall size and weight

H193 x L57 x P51 mm - 290 gr.

Case material

Nylon and fiber glass

Options & Accessories
