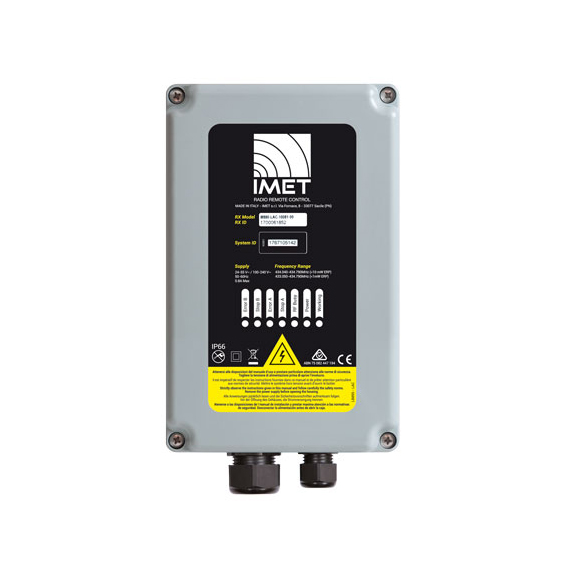

Thanks to its compact size and extreme versatility, the M880 L receiver is perfect for a wide range of on/off applications in AC and DC, as well as for standard proportional applications in DC, such as hydraulic cranes.
It may be installed on the machine in an easy and non-invasive way.
(Click for Technical Data Sheet)
Small and flexible
The receiver S, thanks to its minimum size (127x70x147 mm), can be installed in small spaces.

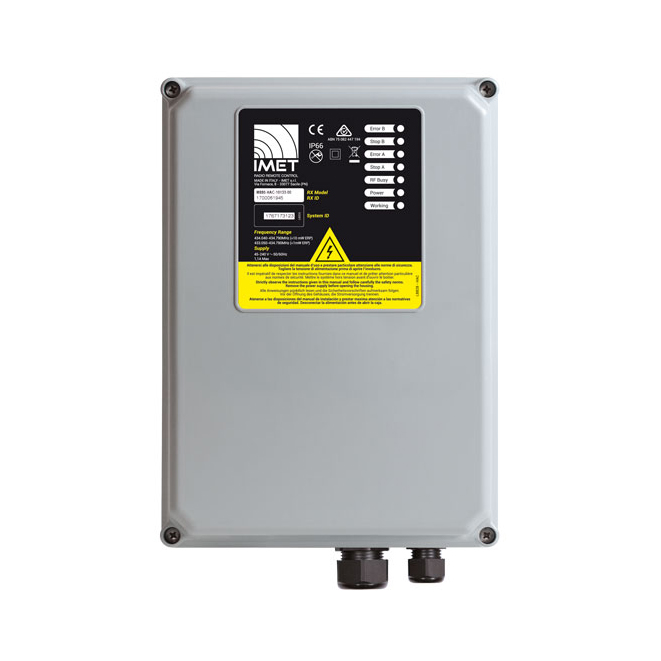

The M880 H receiver can be paired with transmitting units that require executing a significant number and variety of commands.

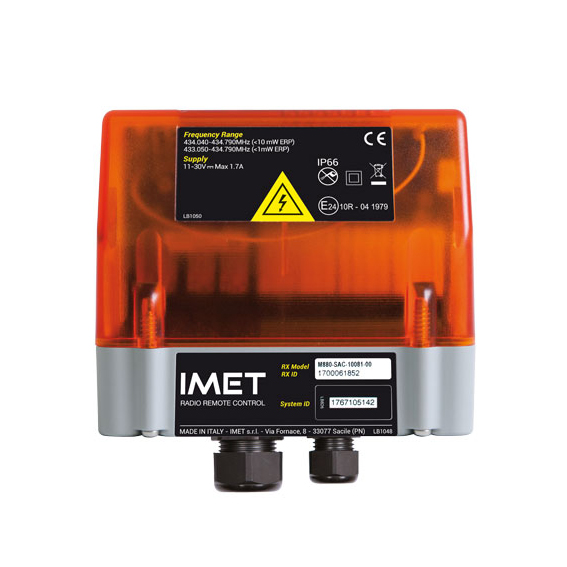

The M AC receiver has been conceived and designed to be installed inside the power cabinet of the machine, thanks to its convenient DIN-rail fitting.
Device of group II. Device designed for environments in which explosive atmospheres may occur;
High protection level: category 2. Intended for use in enviroments in which explosive atmospheres may occur due to gases, vapours, mists or ir and dust mixtures;
Protection system for potentially explosive gases and dusts. The device remains powered and keeps operating in zones 1, 2 (G) e 21, 22 (D);
Explosion-proof housing;
Temperature class 85°C;
Fully protected against dust and powerful water jets (IP66);
Case equipped with a 1” IOS7/1RC and ¾” IOS7/1RC barrier for reinforced cables with specifications: ATEX Ex ll2GD Exd ll C IP 66;
Operating radious 70 m without obstacles.
ATEX Certified Receiving Unit
