ALPI

Download Alpi Brochure

Application

Agriculture
Concrete Mixer
Forest Winch

TECHNICAL DATA :

GENERAL
Frequency Band	868,0125 - 870,9875 MHz
Modulation	GFSK
Hamming distance	> = 10
Work (transport) temperature	-20°C + 55 °C
Operating distance	150m
Passive stop	< 1 sec
Active stop	< 0,35 sec

Transmitter
Number of functions	up to 10
Power supply	Lithium Battery 3,7 V, 1.100 mA
Transmission consumption	< 25 mA
Autonomy	50 hrs
Protection level	IP67
Dimensions	160 x 116 x 56 mm
Weight	286 g

Receiver
Power Supply	9 - 30 Vdc/Vac
Absorbed Power	< 5 W
Protection level	IP67
No contacts	max. 10 channels
Max voltage to the contacts	230 Vac
Max current to the contacts	10 A in AC1, 10 A in DC1 to 30V
Dimensions	165 x 107 x 50 mm
Weight	450 g

Battery Charger
Power supply	5 Vdc
Maximum current	< 1 A
Tension output	4,2 V
Current output	0,45 A
Working temperature	0-45°C

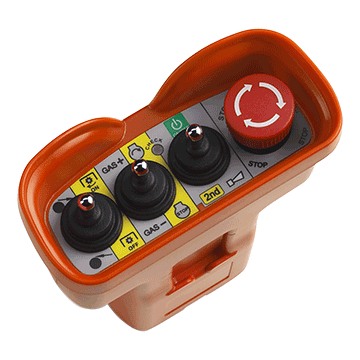

The ALPI radio remote control for forest winches is the result of 20 years of ELCA experience in the development and production of Safety Industrial Radio Remote Controls. It is the ideal partner to work with in the woods. Compact and lightweight (269 g), it can be used with just one hand. Available in up to 10 functions, plus the stop button. The low-power lithium battery electronics allow a week of intense work without recharging (up to 50 hours of battery autonomy). The best free available frequency is automatically searched, without interruption of operation (bi-directional LBT Listen Before Transmit system). Resistant to falls and external agents (IP67). The ALPI model, available both for single and double drum, is mounted by the most prestigious manufacturers and can also be installed after the purchase of the winch, being careful in indicating to our dealer the brand, model and year of production of the winch itself.

The standard package includes: ALPI transmitter, MINI receiver, MITO-ION (12/24 Vdc or 220 Vac) charger, power supply, case for transmitter, waist belt, and optional cabling with 7/13 poles connector.
