IMET's compact transmitter

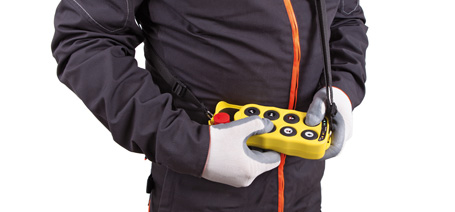

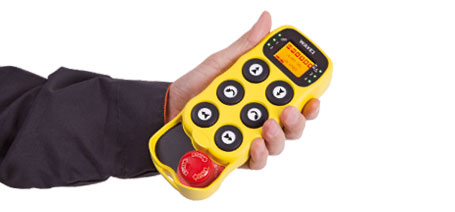

With this product IMET focuses on ergonomics with a transmitter shaped according to the application needs: compact dimension, 25mm diameter motion buttons enabling easy use when wearing industrial gloves, mushroom head STOP button protected from falls.


WAVE S is ideal for electric hoists, overhead cranes, conveyors, small tower cranes, etc.

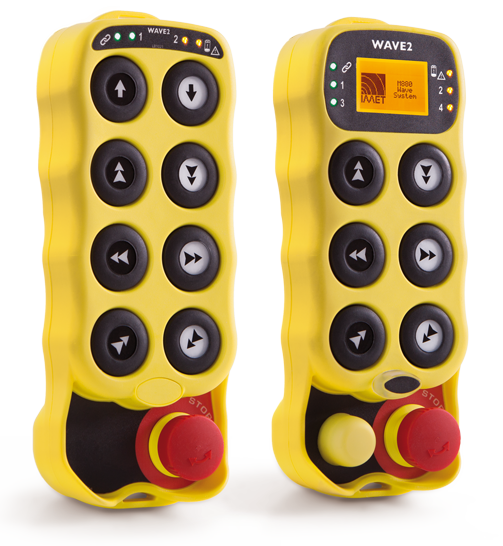

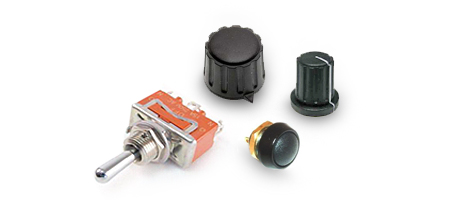

WAVE S transmitters are available with 4, 6, 8 double pressure motion buttons, and all feature a Start/Horn button, a mushroom head Stop button and removable "contactless" safety key for restricted operation as standard. Room for an optional rotary switch, push button, toggle switch or potentiometer is available.


(Click on image to enlarge)

START button:


The command for turning the radio system into working mode. Horn command is activated simultaneously to signal the machine is ready to operate.

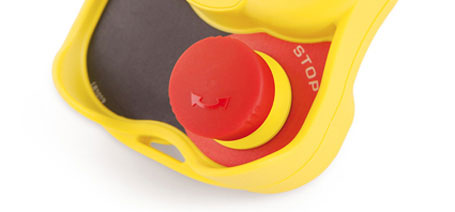

STOP button:


The CAT4 (EN 954-1), mushroom head mechanically latching button is protected against falls by a bumper keeping at the same time a maximum easiness of access.

“Contactless” extractable key:


The contactless magnetic key is a standard feature in all radio remote controls.   No more metallic keys that rust and are not waterproof.

Materials: synthesis of strength , lightweight and environmental care


IMET’s products comply with the directive RoHS (Restriction of Hazardous Substances).


The materials we use are robust, mechanically and thermally stable and resistant to chemically aggressive environments

Extractable rechargeable NiMH


Compared with the previous NiCd batteries, the new NiMH generation grants a larger autonomy together with a negligible “memory effect”.


The transmitter is equipped with an easily accessible battery slot that enables its fast replacement maintaining at the same time a perfect sealing against liquids and dust.

Gold plated contacts guarantee a long and stable electrical connection over the years.

Status Led:


All IMET transmitters are equipped with a led providing information about the working status, the battery level and coded messages

WAVE S


Furthermore ….
